Tea Color Sorter
Our Tea Color Sorter Machineries
Tinttech India Private Limited offers the best tea color sorter in India, which is designed to ensure precision sorting for superior tea quality. Our advanced Tea Color Sorter uses high-resolution CCD cameras and intelligent AI algorithms to detect and remove impurities, ensuring uniform color and purity. With high-speed ejectors, low air consumption, and user-friendly HMI controls, our machines enhance productivity while reducing wastage. Whether for black tea, green tea, or herbal varieties, Tinttech India’s Tea Color Sorter guarantees efficiency and excellence, making it the preferred choice for tea processors across the country.

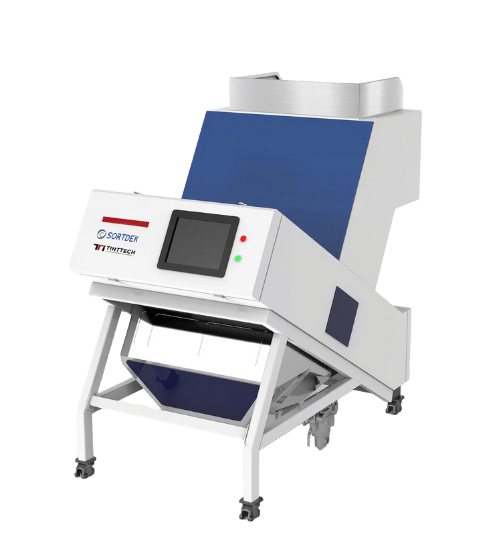

MODEL KS1-1
Technical Specifications
| PROPERTIES | VALUE |
|---|---|
| STAGE | SINGLE |
| CHUTE NUMBER | 1 |
| NUMBER OF EJECTORS | 64 |
| NUMBER OF CCD CAMERAS | 2 NOS |
| DETECTION TYPE (DEFECT IDENTIFICATION) | SORTING BY 1) COLOUR 2) SHAPE 3) SIZE |
| HMI | ARM SYSTEM WITH 15” TOUCH SCREEN |
| POWER | 2.5 KW |
| AIR CONSUMPTION | ＜0.7 M³/MIN |
| WEIGHT | 380 KG |
| DIMENSION | 873 × 1537 × 1640 MM |

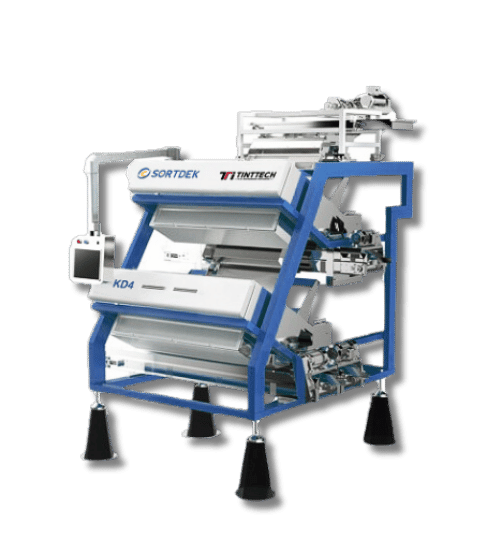

MODEL KD4
Technical Specifications
| PROPERTIES | VALUE |
|---|---|
| STAGE | DOUBLE |
| CHUTE NUMBER | 2 |
| NUMBER OF EJECTORS | 256 |
| NUMBER OF CCD CAMERAS | 4 NOS |
| DETECTION TYPE (DEFECT IDENTIFICATION) | SORTING BY 1) COLOUR 2) SHAPE 3) SIZE |
| HMI | ARM SYSTEM WITH 15” TOUCH SCREEN |
| POWER | 3.2 KW |
| AIR CONSUMPTION | ＜2.0 M³/MIN |
| WEIGHT | 870 KG |
| DIMENSION | 1309 × 1990 × 2111 MM |
MODEL KD8
Technical Specifications
| PROPERTIES | VALUE |
|---|---|
| STAGE | DOUBLE |
| CHUTE NUMBER | 4 |
| NUMBER OF EJECTORS | 512 |
| NUMBER OF CCD CAMERAS | 8 NOS |
| DETECTION TYPE (DEFECT IDENTIFICATION) | SORTING BY 1) COLOUR 2) SHAPE 3) SIZE |
| HMI | ARM SYSTEM WITH 15” TOUCH SCREEN |
| POWER | 4.6 KW |
| AIR CONSUMPTION | ＜3.0 M³/MIN |
| WEIGHT | 1185 KG |
| DIMENSION | 2227 × 2150 × 1982 MM |

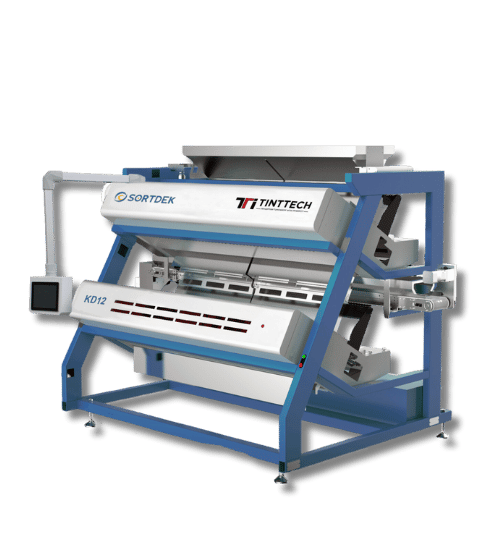

MODEL KD12
Technical Specifications
| PROPERTIES | VALUE |
|---|---|
| STAGE | DOUBLE |
| CHUTE NUMBER | 6 |
| NUMBER OF EJECTORS | 768 |
| NUMBER OF CCD CAMERAS | 12 NOS |
| DETECTION TYPE (DEFECT IDENTIFICATION) | SORTING BY 1) COLOUR 2) SHAPE 3) SIZE |
| HMI | ARM SYSTEM WITH 15” TOUCH SCREEN |
| POWER | 5.3 KW |
| AIR CONSUMPTION | ＜3.0 M³/MIN |
| WEIGHT | 1660 KG |
| DIMENSION | 2960 × 2150 × 1982 MM |
MODEL 1080 TD3
Technical Specifications
| PROPERTIES | VALUE |
|---|---|
| STAGE | THREE |
| CHUTE NUMBER | 6 |
| NUMBER OF EJECTORS | 1080 |
| NUMBER OF CCD CAMERAS | 18 NOS |
| DETECTION TYPE (DEFECT IDENTIFICATION) | SORTING BY 1) COLOUR 2) SHAPE 3) SIZE |
| HMI | ARM SYSTEM WITH 15” TOUCHSCREEN |
| POWER | 10 KW |
| AIR CONSUMPTION | ＜6.4 M³/MIN |
| WEIGHT | 3000 KG |
| DIMENSION | 3500 × 2600 × 3700 MM |
MODEL 1200 TD2
Technical Specifications
| PROPERTIES | VALUE |
|---|---|
| STAGE | FOUR |
| CHUTE NUMBER | 3 |
| NUMBER OF EJECTORS | 1200 |
| NUMBER OF CCD CAMERAS | 24 NOS |
| DETECTION TYPE (DEFECT IDENTIFICATION) | SORTING BY 1) COLOUR 2) SHAPE 3) SIZE |
| HMI | ARM SYSTEM WITH 15” TOUCH SCREEN |
| POWER | 6 KW |
| AIR CONSUMPTION | ＜6.5 M³/MIN |
| WEIGHT | 4000 KG |
| DIMENSION | 3350 × 2820 × 4220 MM |
Precision Engineering
Crafted with meticulous attention to detail, ensuring accurate sorting and minimal product loss
Innovative Technology
Latest advancements and multi-spectral recognition, to provide efficient and reliable sorting solutions
Customized Solutions
Understanding the unique requirements, we offer tailored solutions to meet specific sorting needs
Dedicated Support
From installation to maintenance, our dedicated support team ensures seamless operation
